Technical Specifications
Specifications for this model are coming soon — call us for measured data.

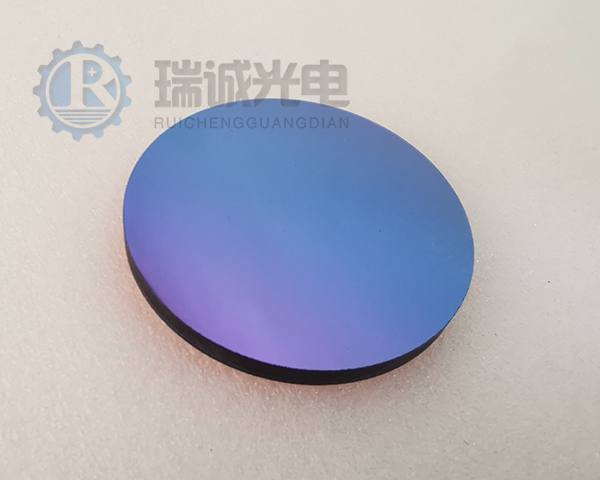

Product Name: 350nm UV Narrowband Filter
Center wavelength: 350+/-2nm
Bandwidth: 10+/-2nm
Transmittance rate:>60%
Cut off wavelength: 200-1200nm
Deadline depth: OD6
Specification: Customized according to customer requirements
Usage: The filter is mainly used in various UV testing instruments, enzyme-linked immunosorbent assay (ELISA) instruments, fluorescence instruments, pesticide residue detection, water quality analysis and testing, etc
Features: Adopting physical ion hard film technology, high wavelength positioning accuracy, hard and firm film layer, heat and moisture resistance, long service life guaranteed for more than 5 years.
Packaging: Plastic Hard Box Filter Dustproof Professional Packaging
Shipping: Regular products, shipped within 3 days; Customized products will be shipped within 10 days.

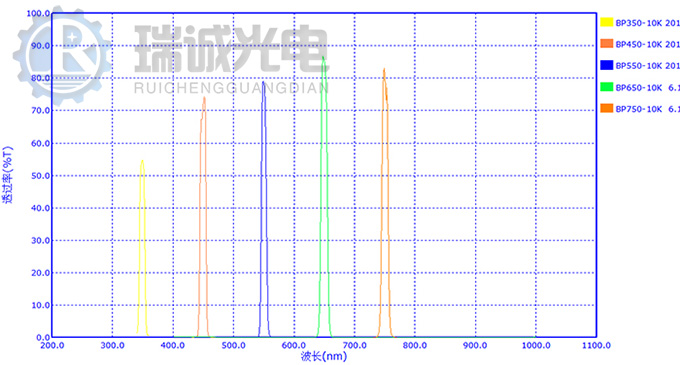

Actual measurement curve: see the following figure
Center wavelength: 350+/-2nm
Bandwidth: 10+/-2nm
Transmittance rate:>60%
Cut off wavelength: 200-1200nm
Deadline depth: OD6
Specification: Customized according to customer requirements
Usage: The filter is mainly used in various UV testing instruments, enzyme-linked immunosorbent assay (ELISA) instruments, fluorescence instruments, pesticide residue detection, water quality analysis and testing, etc
Features: Adopting physical ion hard film technology, high wavelength positioning accuracy, hard and firm film layer, heat and moisture resistance, long service life guaranteed for more than 5 years.
Packaging: Plastic Hard Box Filter Dustproof Professional Packaging
Shipping: Regular products, shipped within 3 days; Customized products will be shipped within 10 days.
Actual measurement curve: see the following figure
